Rhino SCT-X Towable Magnetic Sweepers

The Rhino SCT-X are individual towed units that can be linked side-by-side to clear larger areas such as airports and container terminals. With a waste release lever, ride height adjustment and tow-bar height adjustment.

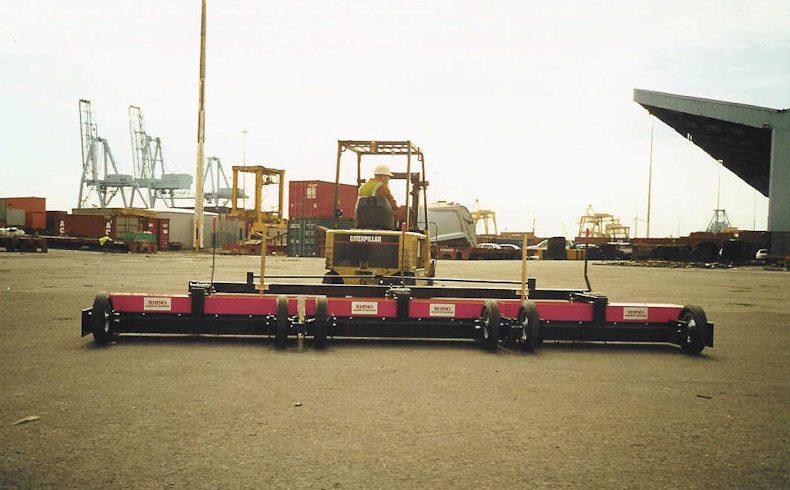

SCT-X double
Towable magnetic sweepers on tow - forklift
Towable magnetic sweepers front view

Description

The Rhino SCT-X towable magnetic sweepers are, fully operational, individual SCT units that are able to be quickly linked together in a series of 2 or 3, in order to cover greater areas more efficiently. Perfect for clearing ferrous waste and debris from areas such as, airport runways, container terminals, docks and car-plants, they can show immediate reductions in the cost of damage and down-time to essential plant and equipment.

Each unit is available in 3 magnet widths, with ride height adjustment, towbar height adjustment and 2 tow attachments to pick from, the towable magnetic sweepers attache easily to normal road vehicles and plant machinery, such as forklifts. (Also available is our forklift magnetic sweeper, mounted on the forks)

On the inside, each unit has two rows of very powerful, permanent, anisotropic magnets allowing them to clear all sorts of ferrous debris found on industrial and transport sites, including nails, screws, wire, security tabs, off-cuts etc.

Releasing the waste is achieved by locating the sweepers over a sheet or collection tray, operating the release levers (which lock into position) and towing away. The waste can then be disposed of safely and easily.

As with all of our products, Rhino SCT-X range is designed to operate in arduous industrial conditions, inside and out, even in standing water. They are fitted with large, solid-tyred wheels and are built for maximum strength and durability to remain maintenance and trouble-free.

The Rhino SCT-X Towable Magnetic Sweepers carry our 5 year warranty against faulty parts or manufacture and is manufactured, by us, in the UK.

Features

  • Available in 1200mm, 1500mm and 1800mm magnet widths
  • Up to 3 units linked together
  • Waste release lever mechanism
  • Ride height adjustment
  • Towbar height adjustment
  • Ball hitch or pin hitch tow attachments
  • Suitable for indoor & outdoor conditions
  • Industrial grade
  • Towing speeds of 5-6mph
  • 2 rows of magnets in each unit (over 50 year lifespan)
  • Solid tyres
  • 5 Year Warranty

Common Uses

  • Airport runways
  • Terminal Docks
For pricing and queries, please get in touch by phoneemail or using the Contact Us page on our website

Product Specification

Magnet Width (mm)
1220 / 1520 / 1820

Overall Width (mm)
1260 / 1560 / 1860

Ground Clearance (mm)
80

Wheel Diameter (mm)
400

Max. Operating Speed
8 MPH

Magnetic Area (CM/2)
3294 / 4104 / 4914

Cleaning Capacity (m2 Per Hour)
9600 / 12000 / 14400

Weight (kg)
170 / 195 / 220

Downloads

Magnetic Sweeper Safety Data (PDF)

Rhino SCTX Operating Instructions (PDF)

Product Comparison Chart (PDF)
